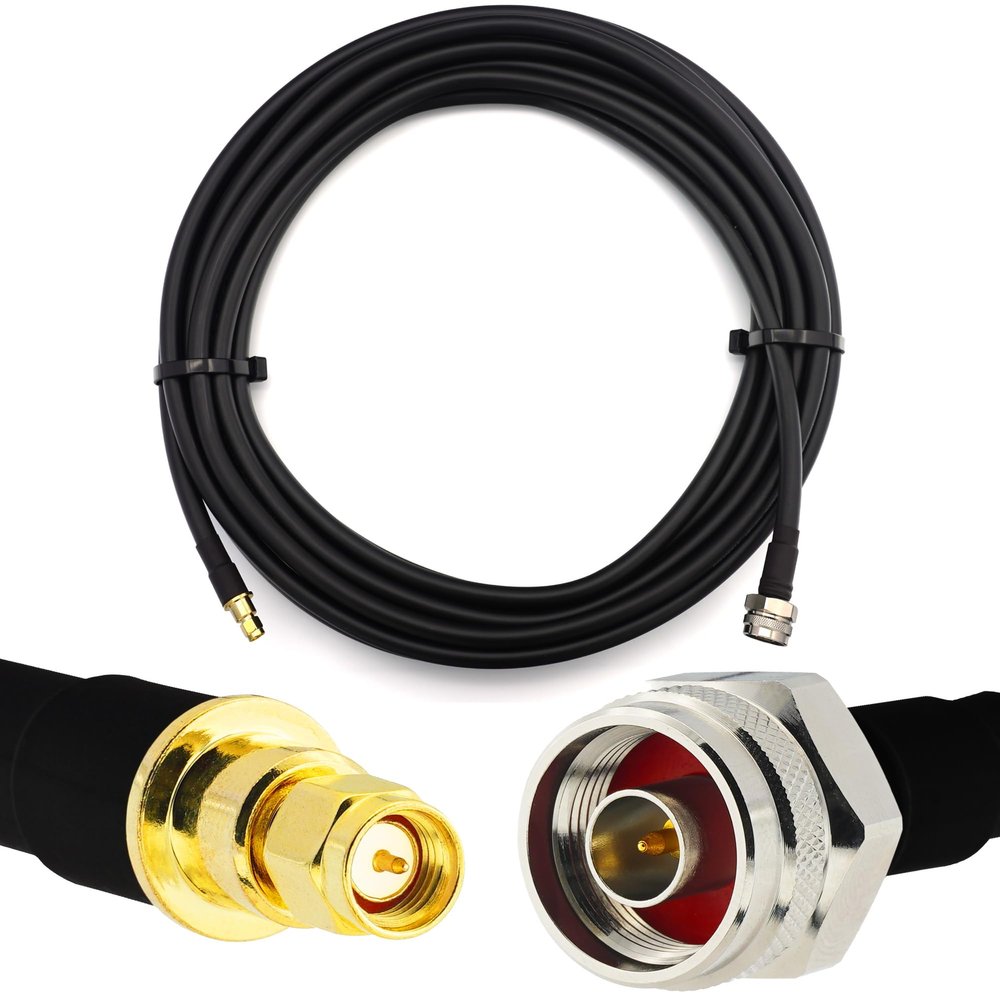

15 m SMA Male to N Male (Hex) IP67 Waterproof HF400 Flex Coaxial Cable, 50 Ohm

Description

• Widely compatible with antennas, routers, 4G/5G repeaters, mobile signal boosters, radio scanners, modems, car transmitters, CB radios, Wi-Fi devices, GPS antennas, RF equipment, wireless LAN devices, and test equipment.
• Suitable for indoor and outdoor use; UV-protected, waterproof, non-contaminating black flexible PVC jacket.
• Pure copper conductor and tinned copper braided shield provide low-loss data transmission and exceptional flexibility.
• Double-wall heat-shrink tubing with an adhesive layer helps protect the connectors from external influences.
• Assembled in the EU; silver-soldered connectors, tested before shipping, and compliant with CE, RoHS, REACH, and CPR Eca standards.

15 m N male (Hex) to SMA male, low-loss HF400 UF flexible coaxial cable for indoor and outdoor use. The cable is double-shielded and has a black, non-contaminating PVC jacket. Cable type: flexible HF400 (LMR-400-UF equivalent) with PVC jacket. Center conductor: pure copper, 7 x 0.95 mm strands. Impedance: 50 ohms. Frequency range: DC11 GHz. Cutoff frequency: 31 GHz. V.S.W.R.: 2. Shielding effectiveness: >90 dB. Capacitance: 80 pF/m. Dielectric: PE. Shielding: 2 layers, aluminum foil and tinned copper braid. Operating temperature: -30 to +70C. Diameter: 10.30 mm. Center conductor diameter: 2.75 mm. Dielectric diameter: 7.25 mm and 7.95 mm as specified. Minimum bend radius: 100 mm. Attenuation per 100 m: 13.2 dB at 900 MHz, 19.3 dB at 1800 MHz, 23.3 dB at 2500 MHz, and 37.7 dB at 5800 MHz.
