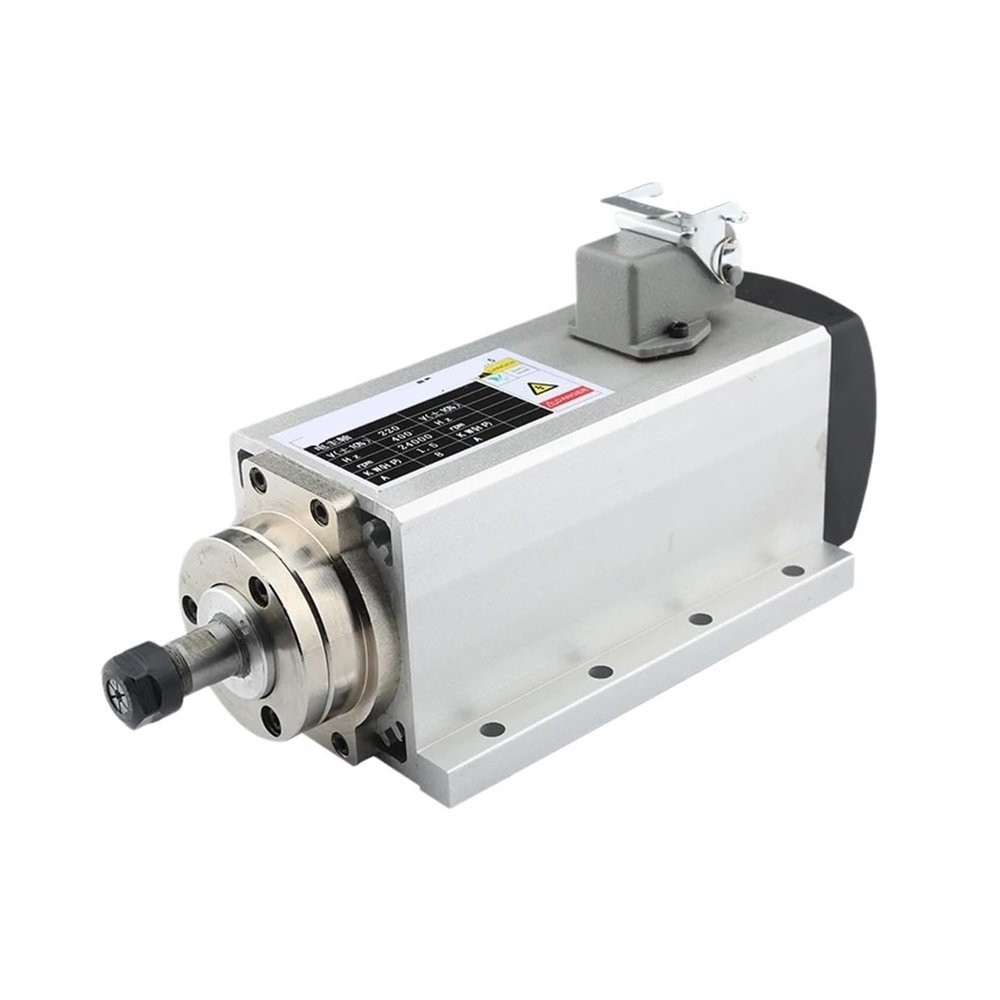

1.5 kW ER11 Air-Cooled Spindle Motor, 220/380 V, 24,000 rpm, Mounting Flange

Description

• Spindle sanding machines

Model: GDZ98x70-1.5 Speed control mode: Three-phase output frequency converter. The spindle speed can be changed by adjusting the frequency converter frequency. Cooling method: Air cooling Power interface: An optional 6-pin square aviation connector is available. The aviation connector is marked 1, 2, 3, 4, 5, and GND. Pins 1, 2, and 3 connect to the inverter (U, V, W), and GND connects to the inverter ground. Power: 1.5 kW Voltage: 220 V/380 V Current: 8.0 A Frequency: 0400 Hz Speed: 024,000 rpm Runout: Less than 0.01 mm Bearings: 4 fully sealed angular-contact ball bearings Collet chuck: ER11 Collet tool diameters: 7 mm, 6.5 mm, 6.35 mm, 6 mm, 5.5 mm, 5 mm, 4.5 mm, 4 mm, 3.5 mm, 3.175 mm, 3.0 mm, 2.5 mm, 2 mm, 1.5 mm, and 1 mm (4 mm standard) Water-cooled ER11 collet chuck
