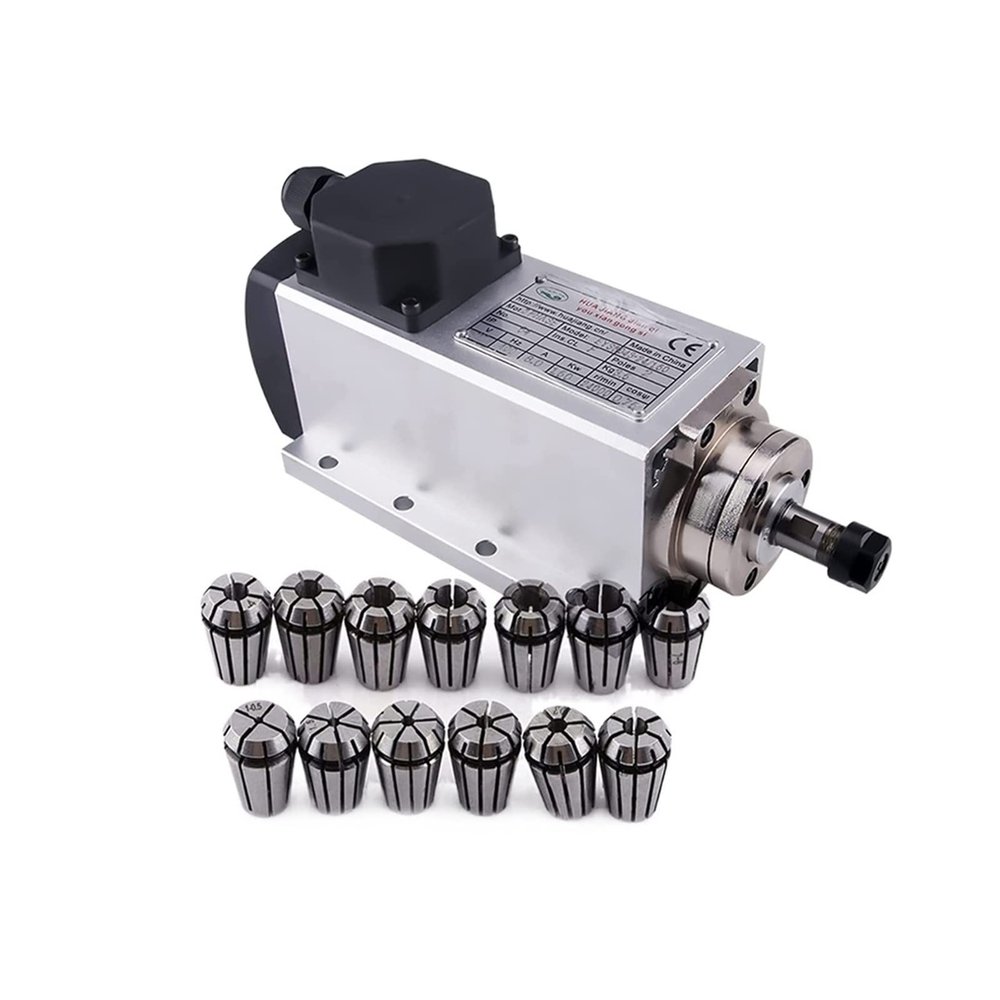

1.5 kW Air-Cooled Spindle Motor Kit with ER11 Collets

Description

• PID control with advanced closed-loop arithmetic, fast response, and high suitability
• Simple PLC function with 16-step speed and inverter control
• RS485 communication port with international MODBUS standard control and strong interference resistance
• Low-speed operation with 150% rated output torque at 0.5 Hz
• Carrier frequency adjustable up to 16 kHz for a virtually silent working environment

Air-cooled spindle motor kit for CNC milling and woodworking machines. Package contents: - 1 x 1.5 kW spindle motor - 1 x ER11 collet set, 13 pieces: 1 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, and 7 mm Spindle motor specifications: - Power: 1.5 kW - Current: 8 A - Frequency: 400 Hz - Speed: 124,000 rpm - Cooling: Air cooling - Runout: Less than 0.01 mm - Collet: ER11 - Bearings: 4 - Bearing lubrication: Grease lubrication Applications include winding machines, mixers, extruders, roll cutters, winders, compressors, fans, pumps, mills, conveyors, elevators, centrifuges, and other speed-controlled machines. Additional features: - Wide voltage operating range; normal operation at 304456 V - Automatic voltage regulation (AVR) technology to ensure inverter load capacity - Various synchronized and non-synchronized control technologies - Fast dynamic starting without changing the braking system - Fault protection and short-circuit protection - Dead-time compensation and automatic torque-slip compensation, providing up to 180% torque output at a low frequency of 0.25 Hz - EMC design to minimize inverter interference with the power supply - Overall reinforced layer for various harsh environments
