10-Pack 4W 3-Pin Glass Reed Switches with Magnets

Description

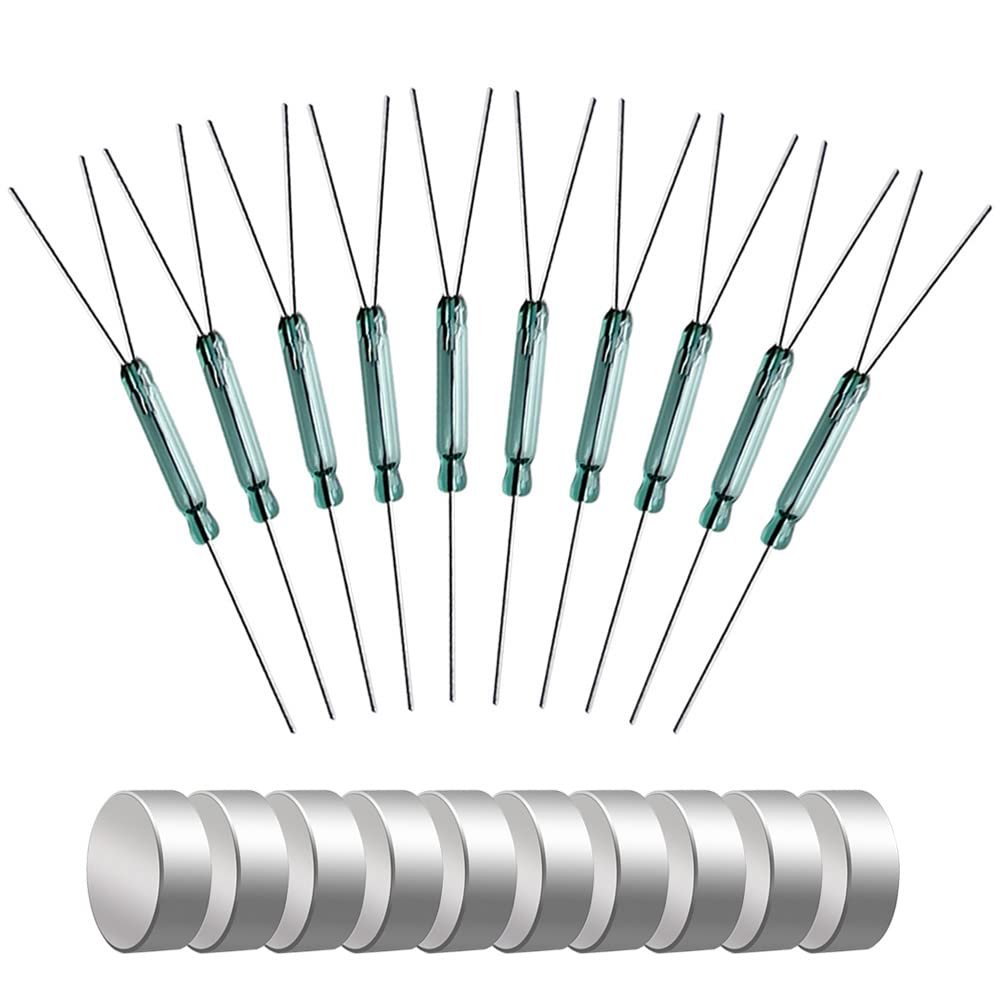

• Includes 10 3-pin reed switches and 10 magnets.
• Glass length: 14 mm; glass diameter: 2.5 mm; total length: 52 mm.
• Maximum switching current: 0.25 A; maximum load current: 0.5 A.
• Maximum contact rating: 4 W; maximum switching voltage: 60 VDC/VAC.
• Operating temperature: -20C to 80C.
• Maximum contact resistance: 115 M; minimum insulation resistance: 210^7 / 210^9.

Product description Package contents: 10 3-pin reed switches 10 magnets Specifications: Maximum power: 4 W Maximum switching voltage: 60 VDC/VAC High voltage: 60 VDC/VAC Operating temperature: -20C to 80C Maximum switching current: 0.25 A Maximum load current: 0.5 A Operate time: 0.25 ms Bounce time: 0.05 ms Maximum contact resistance: 115 M Minimum insulation resistance: 210^7 / 210^9 Sensitivity value: 1020 AT Response frequency: 3000 Hz Minimum reset value: 5 FT Maximum contact capacitance: 2.0 pF
