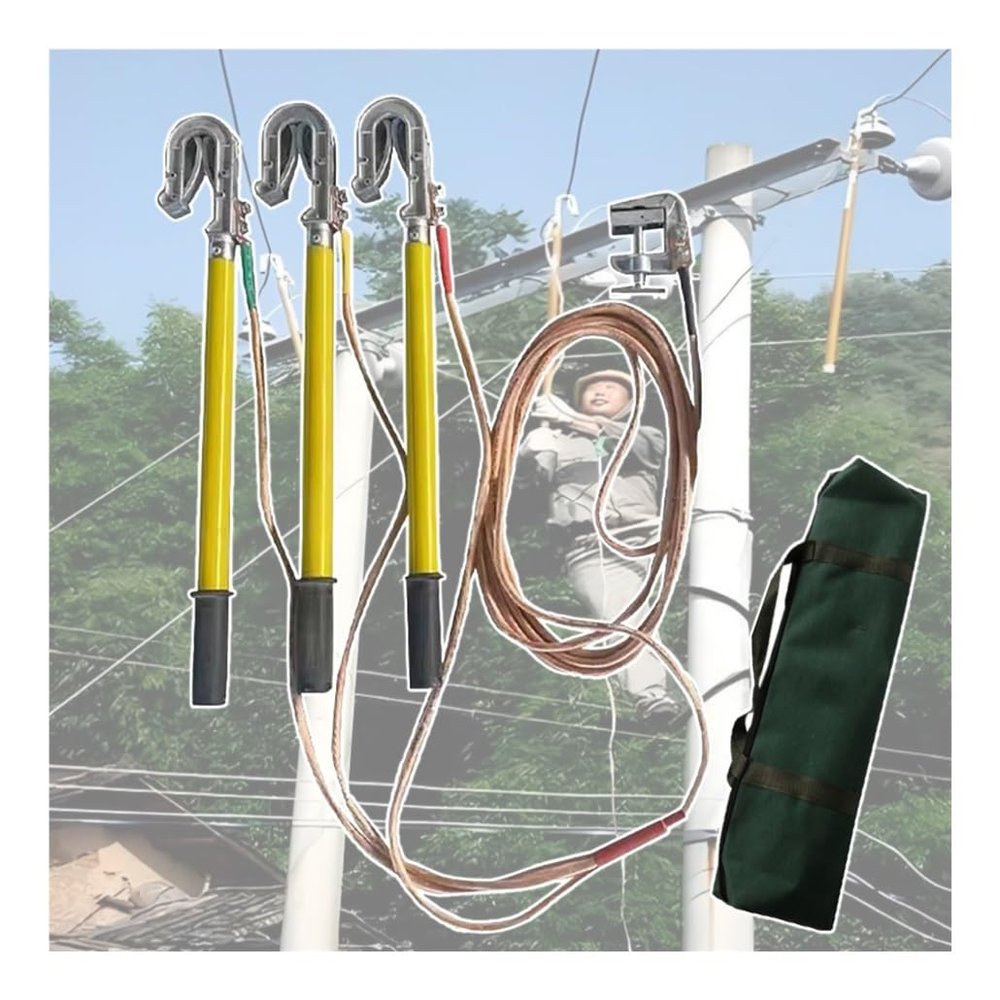

10 kV High-Voltage Grounding Cable with 3-Piece Grounding Rod, 25 mm² Flexible Copper Wire, Green, 0.5 m

Description

• Grounding rod made of glass-fiber-reinforced epoxy resin
• Three cables for each indoor high- and low-voltage group; three cables for outdoor high voltage
• Epoxy resin provides strong insulation
• Indoor use: flat-screw terminal and grounding connection
• Outdoor use: double-spring clamp and grounding spike
• Connect the grounding end first, followed by the conductor end
• Ensure reliable contact; remove the grounding cable in the reverse order
• Use insulating gloves and insulating rods during installation or removal

What is a high-voltage grounding cable? A high-voltage grounding cable is a short-circuit device that must be connected in the power industry before equipment or lines are shut down for maintenance. It is a protective device intended to prevent sudden power restoration from injuring operators or damaging equipment. In the event of a leakage current, it can conduct the current safely to ground, reducing the risk of electric shock to operators. It may also be referred to as a grounding short-circuit cable. This indoor high-voltage grounding cable has a 10 kV bottle-neck spiral head with an insulated rubber handle. It is designed to be safe, reliable, and weather-resistant, and can be used in substations, power towers, power plants, circuit maintenance, and other areas. Specification: Name: indoor high-voltage grounding set; Product style: flat spiral; Material: epoxy resin rod and copper wire; Grounding rod lengths: 0.5 m and 1.0 m; Colors: green and yellow; Voltage rating: 10 kV; Copper wire: national-standard 25 mm; Accessory: polished aluminum clamp; Application areas: substations, power poles, power plants, and circuit maintenance. Features: The grounding wire is made of epoxy resin with strong insulation. The grounding rod has an insulated, non-slip handle for convenient operation and safety protection. Included: 3 0.5 m/1.0 m flat steel pieces, 1 grounding clip, 3 1 m fork lines, and 1 2 m tail line. Notes: Manual measurement may result in a 12 cm deviation. Colors may vary between monitors; refer to the actual product.
