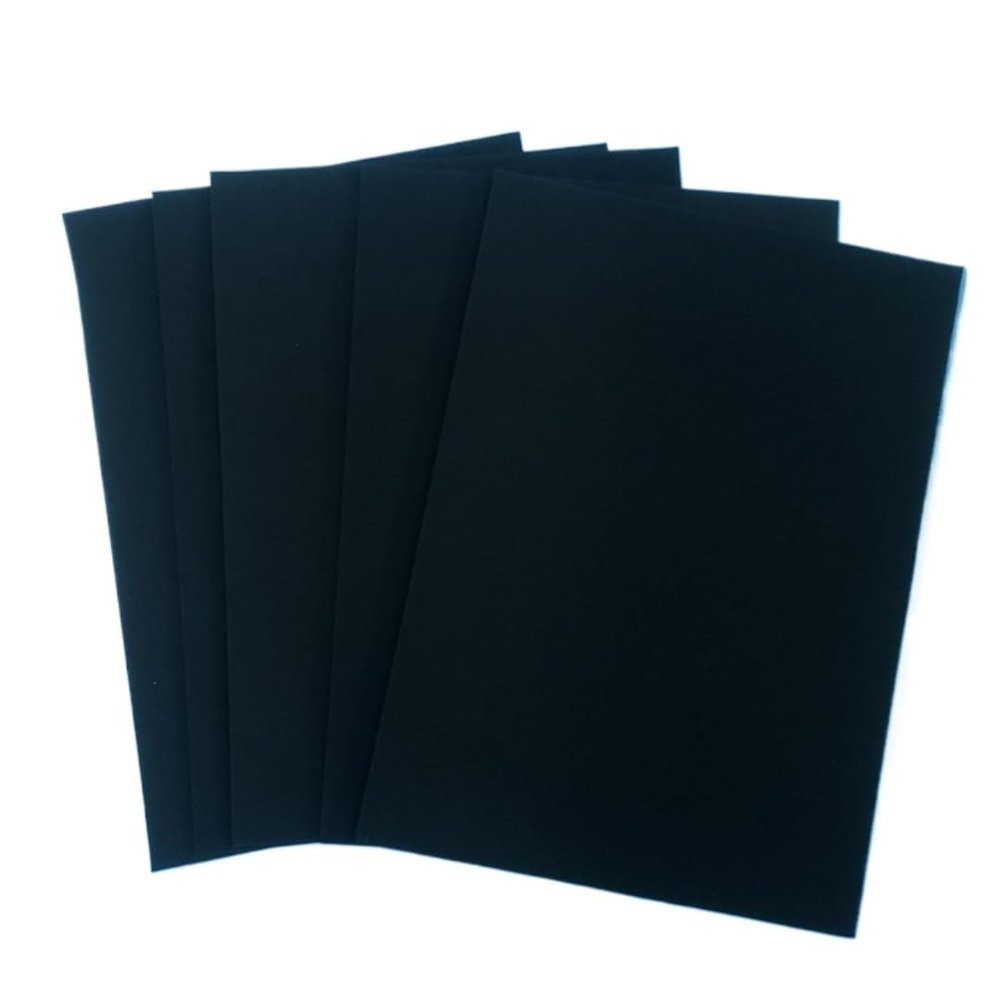

1 Piece Black Conductive Sponge with Self-Adhesive Backing, 0.330 mm Thick EMI Shielding Foam for Electronics (Thick 1.0 mm)

Description

• Multidirectional conductivity: Galvanized polyurethane foam provides 360 EMI/RFI shielding and up to 80 dB protection against signal interference in sensitive electronics.
• Durable and resilient: Open-cell conductive sponge with 3090 PPI retains a compression recovery rate of over 85% after more than 1,000 cycles.
• Strong adhesive bond: Conductive fabric backing with pressure-sensitive adhesive provides secure attachment to metal surfaces and curved housings.
• Precision thickness options: Available in customizable thicknesses from 0.3 mm to 30 mm, with a tolerance of 0.1 mm.
• Wide operating temperature range: Effective from -40C to +120C for various electronic applications and environments.

Material composition: - Base material: Open-cell polyurethane (PU) foam - [Specification unclear in source: <;0.1 /sq)] - Backing material: Conductive fabric tape with acrylic adhesive Electrical properties: - Volume resistance: 10^210^4 cm - Shielding effectiveness: 6080 dB (1 MHz10 GHz) - [Specification unclear in source: <;0.5 s (IEC 61340-5-1)] Parameters: - Thickness range: 0.3 mm to 30 mm (customizable) - [Specification unclear in source: <;15% (ASTM D3574)] - Operating temperature: -40C to +120C - Peel strength: 1.5 N/cm (ASTM D3330)
